Multiple repositories

Autonoma tests a pull request by opening one app in a browser - the frontend. The apps and services behind it can live in a single repository or several; when they span repositories, Autonoma pulls them all into the same preview.

The frontend

Every project has exactly one frontend: the app Autonoma opens in the browser to run its tests, and whose address becomes the preview’s URL. It lives in the repository you open pull requests against.

The frontend rarely stands alone - it calls an API, background workers, a database. Those can sit in the same repository, or in their own. Either way they deploy together, into the single preview environment for that pull request, and Autonoma wires them to each other. Think of the frontend as the root of a tree: everything else is there to support the one thing the browser opens.

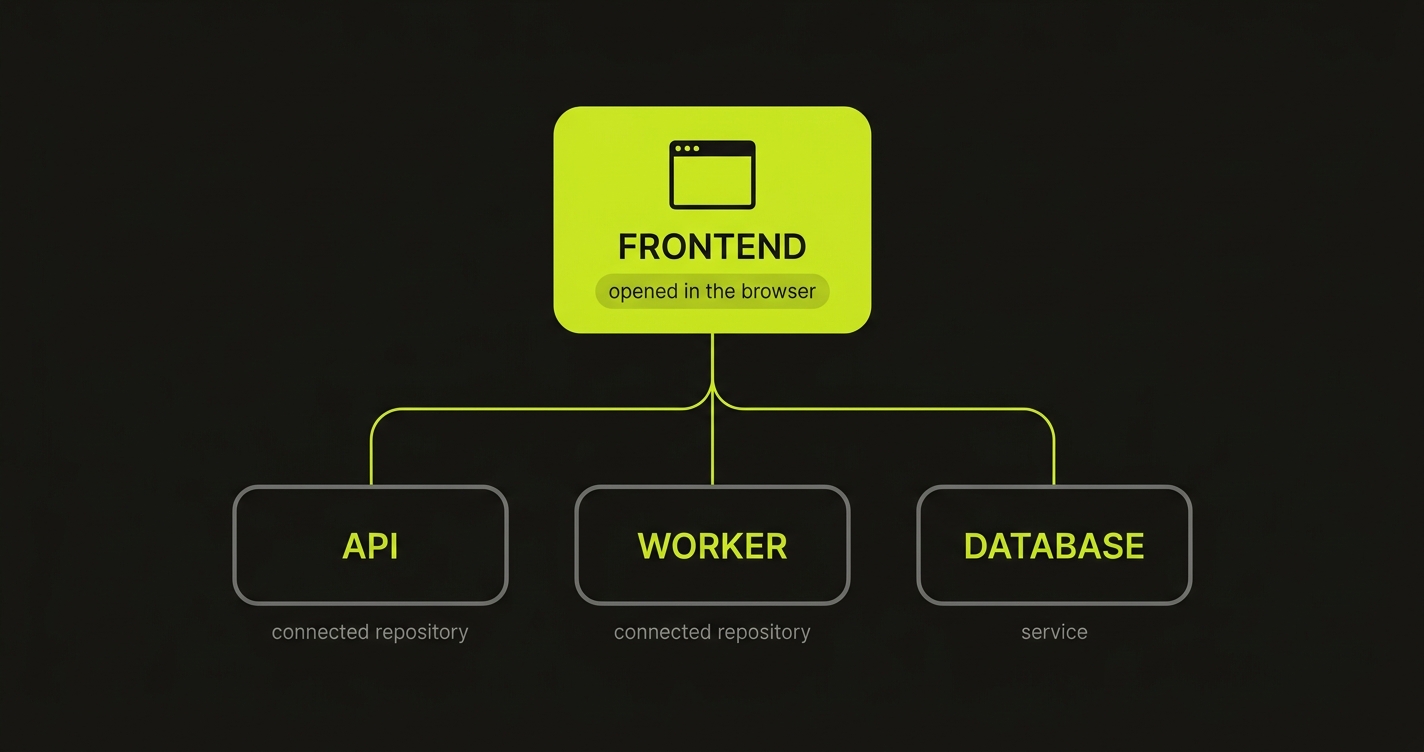

A tree with the frontend app at the root and the API, worker, and database it depends on branching below it, each tagged with the repository it comes from

Connected repositories

When an app your frontend needs lives in a different repository, you add that repository as a connected repository. You do it while adding an app: pick which repository the app comes from, or connect a new one through the Autonoma GitHub App. Every app records the repository it builds from, so the set of repositories in a preview is simply the set its apps name.

Each connected repository carries one setting:

  • Fallback branch - the branch to deploy when branch matching finds no match (see below). Defaults to main.

Every app from the same connected repository shares it.

Which branch gets deployed

For the repository you open pull requests against, the answer is obvious: the pull request’s own branch. For a connected repository it isn’t - the pull request’s branch usually doesn’t exist there. Branch matching is the single rule that decides which branch of every connected repository Autonoma builds for a given pull request.

If the branch it picks doesn’t exist in the connected repository, Autonoma always falls back to that repository’s fallback branch, so a preview never fails just because a connected repository has no matching branch. If the fallback branch doesn’t exist either, the deploy fails: previews are all-or-nothing, and an app whose source can’t be resolved can never come up.

Branch matchingFor a PR on branch feature/x, a connected repository builds…
Same branch namefeature/x if that branch exists there, otherwise the fallback branch. Use this when you develop a feature across repositories on branches with the same name.
Fallback branch only (default)Always the fallback branch (e.g. main). Use this when the connected repository is a stable service you don’t branch per feature.
Regex rewriteA branch name derived by rewriting feature/x with a regular expression (e.g. stripping a feature/ prefix), falling back if the result doesn’t exist. Use this when your repositories follow different but predictable branch conventions.

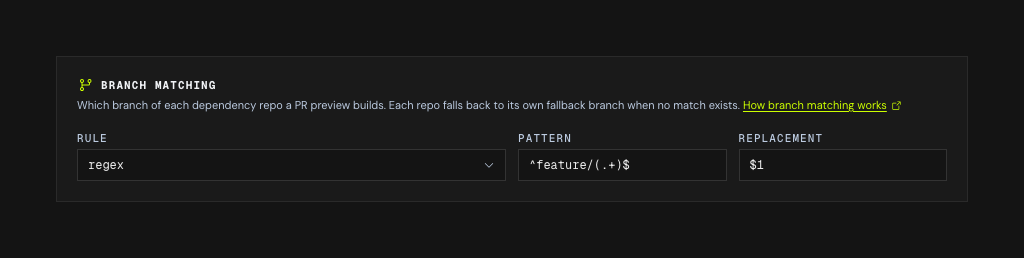

The branch matching control set to regex rewrite, which reveals two extra fields it alone uses - a Pattern holding the expression that matches a feature branch, and a Replacement holding the capture group it rewrites to

Picking Regex rewrite reveals the Pattern and Replacement fields; the other two rules need no extra input. The control only appears once at least one repository is connected.

Branch matching is set once and applies to every connected repository in the project; the fallback branch is per repository.
